Hand Operated Multifunctional Steel Plate Beveling Machine Pipe Chamfering

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

Hand Operated Multifunctional Steel Plate Beveling Machine Pipe Chamfering

  • 1
  • 2

Brand Name : Wellnit

Model Number : PBM-20

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 10set / month

Delivery Time : within 7 days after received 100% payment

Packaging Details : Plywood Box

Voltage : AC 3PH380V 50hZ

Total Power : 1100W

Clamp Thickness : 5-15mm

Rotation Speed : 2000r/min

Gross Weight : 30kg

Warranty : 1 year

Contact Now

Portable hand-operated multifunctional steel plate beveling machine and pipe chamfering machine

Product Introduction

The multi-functional steel plate milling machine adopts cold working method, no sparks, will not affect the material, and the working range is unlimited (pipes above 133mm can be processed). The machine is compact in structure, light in weight, easy to carry, milling processing, smooth slope, and surface finish can be as high as Ra3.2-Ra6.3. Small working radius, suitable for any working space, fast beveling, deburring, equipped with CNC milling blades, CNC CNC blades, low consumables. It can process linear plates, round pipes, and bevel forms: V, Y, X, etc.

PBM-20 product information

Voltage AC 3PH 380V 50Hz
Total Power 1100W
Clamp Thickness 5-15MM
Bevel Angle 30° 37.5° 45°
Rotation Speed 2000r/min
Pipe Min ID Size 133mm
Bevel width 1-15mm
Tool Bit Qty 4 Pcs
Net Weight 25kg
Gross Weight 30kg
Machine Dimension 485*405*290mm
Processing materials Carbon steel,stainless steel , Aluminum alloy ,Composite plate

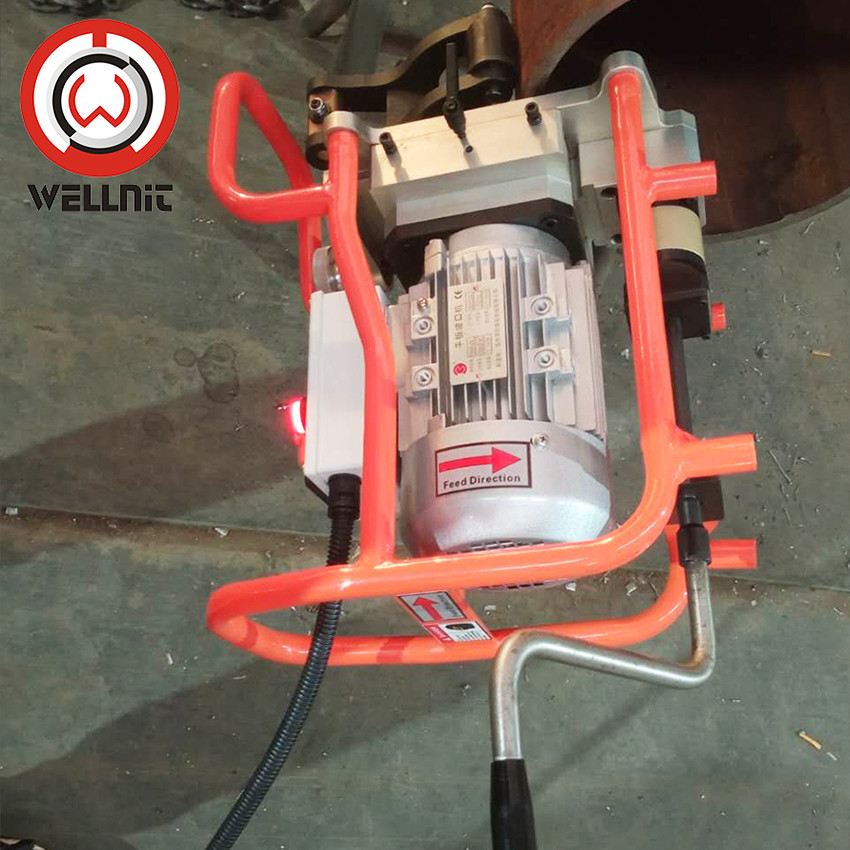

Hand Operated Multifunctional Steel Plate Beveling Machine Pipe Chamfering

Products Show

Hand Operated Multifunctional Steel Plate Beveling Machine Pipe Chamfering

Hand Operated Multifunctional Steel Plate Beveling Machine Pipe Chamfering
